DEW POINT SENSORS: A VALUABLE APPLICATION FOR COMPRESSED AIR TECHNOLOGY

June 11, 2020

Dew point monitoring is among the most important steps you can take when caring for your compressed air technology. If the dew point isn’t where it should, moisture will accumulate in your compressed air system, resulting in pipe corrosion, reduced lifespan for pneumatic parts, and even unscheduled downtime. Fortunately, thanks to massive leaps in compressed air technology, dew point monitoring is now easier and more accurate than ever before, with companies like SUTO leading the way.

One of Airtec’s most highly recommended product lines, SUTO offers compressed air technology that allows you to access data from sensors placed throughout your system, giving you a clear picture of the status of your compressed air system. With SUTO’s dew point sensors and monitors, you can see the dew points of different parts of your system in a central dashboard, helping you identify where problems might be occurring. Additionally, many SUTO sensors have automated notifications that are sent when dew points reach a certain threshold, allowing you to take control quickly.

SUTO’s Dew Point Sensors and Meters

All of the SUTO dew point sensors and meters offer rapid response time and a durable, long-lasting build. Many are also equipped with SUTO’s IP65 casing, providing robust protection for even the most rugged industrial environments. If you’re interested in learning more about any of the below or our other efficiency-boosting solutions, feel free to reach out to Airtec today!

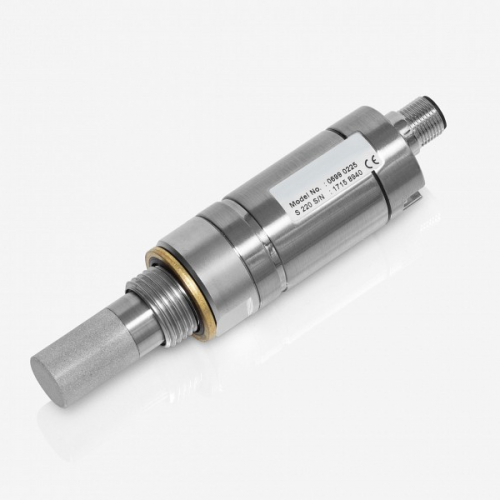

S 220 Dew Point Sensor (-100ºC … 0ºC)

Small size makes it ideal for dryer installations
Measures dew points down to -100°C
SUTO QCM sensor technology
Version with integrated pressure measurement
Various output versions available: 1 x 4 at 20 mA, 2 x 4 at 20 mA, RS-485 (Modbus), 4 at 20 mA loop powered
Can be installed directly into dryers through G 1/2” thread
High accuracy of ±2°C dew point
M12 connector

S 212 Dew Point Sensor (-50ºC … 20ºC)

For low dew point applications down to -50ºC
High accuracy of ±2°C dew point

S 215 Dew Point Sensor (-20ºC … +50ºC)

Affordable dew point sensor for mid range applications such as refrigerant dryer monitoring
Can be installed directly into dryers through G ½” thread
High accuracy of ±2°C dew point

S 217-OEM Dew Point Sensor (-50ºC … +50ºC)

Small size makes it ideal for dryer installations
Measures dew points down to -50°C
2-wire or 3-wire output
Can be installed directly into dryers through G 1/2” thread
High accuracy of 1°C to 2°C dew point
Withstands condensation
M8 / M12 connector and cable with open wires

S 230/231 Dew Point Sensor (-100ºC … +20ºC)

Dew point sensor with optional ATEX, IECEx approval
Dual sensor technology for high accuracy of 2°C over the whole range from -100°C to +20°C
Two outputs available: 4 … 20 mA, RS-485 (Modbus RTU).

S 201 Dew Point Sensor With Display and Alarm (-60ºC … +20ºC)

For low dew point applications down to -60°C
Graphic display and Relay output
Can be installed directly into dryers through G ½” thread
High accuracy of ±2°C dew point

S 305 Dew Point Monitor (-50ºC … +20ºC / -20ºC … +50ºC)

2 models: -50°C … +20°C and -20°C … +50°C
Plug & Play (complete solution)
Compressed air supply through 6 mm Quick-Connect
Power supply: 100 … 240 VAC or 24 VDC
Wall or panel mountable
Accuracy of ±2°C
4 … 20 mA output to PLC or SCADA system
Pre– and Main-Alarm programmable:
- Optical: red blinking display
- 2 relay outputs

S 505 Portable Dew Point Meter (-100ºC … +50ºC)

Measures dew point, temperature and pressure (all in one instrument)
3 sensor solutions available:
- Q: -100°C … -30°C sensor for trace moisture applications
- P: -50°C … +50°C sensor for standard applications
- Q+P: covering the full range of dew point measurement
Modern color touch screen interface
Data logger, USB interface, wireless connection to portable printer
Measuring / parking chamber for fast sensor response
Application software included
