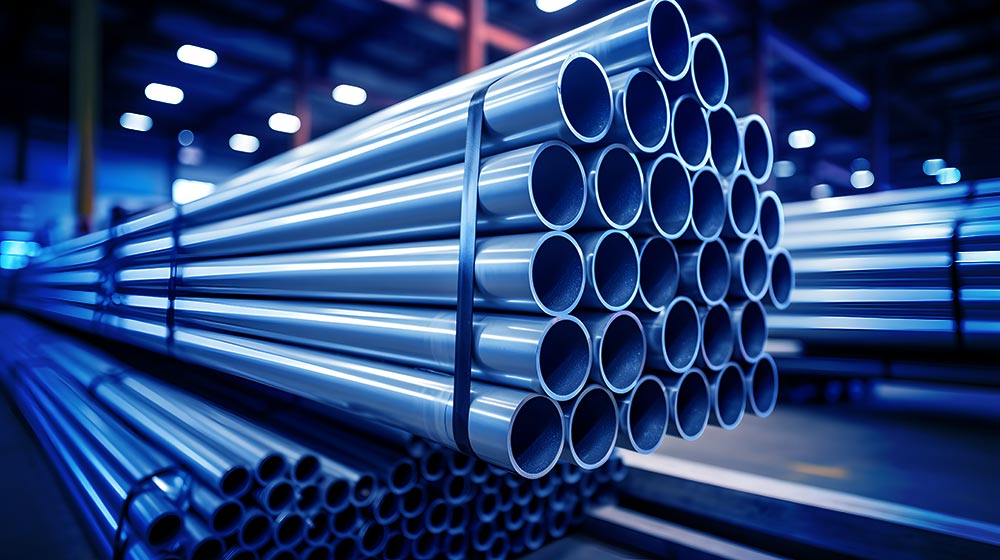

Maximizing ROI: How to Determine When to Upgrade to Aluminum Compressed Air Piping

When should you consider replacing your aging iron distribution piping? Should you stick with the status quo or consider switching to aluminum pipes? While black iron piping is a common choice for compressed air distribution, this type of piping doesn’t last forever. Working with an aging distribution system could be costing you more than you realize. So what’s the return on investment (ROI) for transitioning to aluminum piping from iron?

What is the Lifespan of Compressed Air Piping?

The lifespan of your compressed air distribution system depends significantly on two key factors: The material selected for the piping system and the level of maintenance it receives. A black iron piping system can last 20 years or more given proper care, yet it may fail in as little as a decade. The large disparity in lifespan comes down to the moisture levels that are within the compressed air.

Iron piping is prone to corrosion when it encounters moisture, and as you know compressed air can often be full of moisture. When iron rusts, it results in the accumulation of corrosion, known as scale, within the pipes. As time progresses, this scale buildup gradually reduces the inner diameter of the pipe, restricting airflow. Rust flakes may dislodge inside the pipes, potentially obstructing inline filters or contaminating the air supply.

To extend the lifespan of your black iron piping, it’s essential to maintain dry air using air dryers and filters. Despite diligent care, completely removing all moisture and eventual corrosion is nearly impossible. Eventually, the piping will degrade and deteriorate to the point where replacement will be necessary.

Lifespan of Black Iron vs. Aluminum Piping

When comparing them, aluminum piping generally boasts a longer lifespan than black iron. With the appropriate maintenance, aluminum piping can endure for numerous decades. The key factor lies in their corrosion resistance: unlike iron, aluminum doesn’t rust. Instead, it forms a protective layer of aluminum oxide when exposed to oxygen, warding off further corrosion. This means aluminum distribution piping is less prone to the scale issues often encountered with black iron. Under similar operational and environmental conditions, aluminum piping is expected to outlive black iron by years, if not decades.

When to Replace Your Compressed Air Distribution Piping

Determining when to replace your black iron distribution piping involves observing various signs of degradation. These indicators may include leaks, increased pressure drop, clogged filters, and air contamination.


Black iron piping is highly prone to developing leaks at its joints, often before corrosion becomes visibly prominent. As corrosion progresses, you may observe pinhole leaks initially, which can escalate to larger leaks within the pipe over time. These leaks can create significant challenges for both energy expenses and overall financial performance; on average, compressed air leaks cost manufacturers substantial sums annually. An aging iron distribution system may harbor numerous leaks, some too small to detect without specialized equipment. While these leaks can be temporarily patched or repaired, there comes a point where replacing the entire system proves more cost-effective than continually addressing newly forming leaks. Additionally, having a leaky distribution system places additional strain on your compressor as it struggles to meet air demands. This can lead to increased wear and tear causing a shortened service life on your compressor, resulting in heightened energy expenses for the overall system.

Excess Pressure Drop

As iron rusts, the inner corrosion of iron piping gradually reduces the pipe’s interior diameter, impacting airflow and causing the interior surface to become rough rather than smooth leading to disruption of the laminar flow of compressed air. You’ll also observe an increase in pressure drop throughout your distribution system. This heightened pressure drop forces your compressor to exert more effort in pushing air through the deteriorated distribution network, resulting in high energy costs and accelerated compressor wear. In severe cases of scale buildup, complete blockages can occur within the compressed air piping, particularly at joins and bends in the system as rust and other contaminants collected within the already narrowed pipe. Blockages like this can halt production or even lead to hazardous pipe failures.

Blocked Filters

We’re all accustomed to seeing the reddish flakes that form when iron rusts. As these tiny scale flakes detach inside the distribution piping, they get carried along with the airstream. Any rust particles dislodged before reaching an inline filter will be trapped by the filter media, safeguarding downstream processes from contamination. However in the presence of significant scale accumulation, filters will rapidly become clogged requiring more frequent replacements.

Contamination in Compressed Air

Iron particles within your piping system can also end up in the final air supply. Rust particles dislodged after the final inline filter will be present in the air you are using for your processes. The significance of this depends on your air quality standards, ranging from a minor inconvenience to a critical issue. Rust particles have the potential to harm pneumatic tools and equipment as well as cause product quality complications, such as issues with paint and coating spray application. If you must maintain a particular air purity standard, as outlined in ISO 8573-1:2010, any scale present in your air distribution system may lead to non-compliance.

The Financial Impact of a Declining Compressed Air Distribution System

An aging compressed air distribution system can contribute to increased operating costs through various channels, including:

  • Wasted compressed air due to leaks in your system when compressed air is one of your most expensive utilities.
  • Higher energy costs as a consequence of harder workload for your air compressor.
  • Accelerated wear and tear on your compressor, resulting in a shortened service life.
  • Elevated maintenance costs, including consumables such as filters and increased maintenance time.
  • Compromised product quality resulting in inventory loss.
  • Increased downtime required to address leaks and blockages within the system.

The ROI From Upgrading to Aluminum Compressed Air Piping

When it’s time for a distribution system upgrade, prioritizing a higher-quality and more durable piping system is financially beneficial. Although aluminum piping has a slightly higher initial cost compared to black iron, its long-term savings are significant and will pay for itself over time. Typically, it takes approximately five to seven years to recover the cost disparity between aluminum and iron through reduced operating expenses. Considering its extended service life, which often surpasses that of other materials by a considerable margin, the ROI for aluminum distribution piping is quite high and favorable.

Aluminum pays for itself by:

No Leaks

A top-notch aluminum piping system ensures leak-free performance both at installation and maintains the same performance level over time. Aluminum pipe fittings effectively prevent air leaks at joints, and because it doesn’t rust you can count on uninterrupted, leak-free service for an extended period of time. This preservation of compressed air minimizes wastage due to leaks, allowing for more efficient utilization in production applications.

Lower Pressure Drops

Since aluminum does not accumulate scale or rust within the lines, you’ll avoid the gradual pressure drop typically associated with black iron piping. This ensures consistently clear and unobstructed air lines for your systems.

Reduced Maintenance Issues

By eliminating scale and rust, you’ll encounter fewer challenges with your compressed air distribution system. This translates to less frequent changes of inline filters and a significantly reduced risk of pipe blockages. Additionally, your compressor motor will experience less wear and tear leading to a longer service life.

Cleaner Air

For those prioritizing air purity, aluminum emerges as the optimal choice. Similar to the high cost associated with stainless steel, its corrosion-resistant nature ensures cleaner air output. Aluminum is appropriate for nearly all purity levels except the most stringent, such as medical-grade or breathing air standards. Even in food and medical-grade scenarios, aluminum is frequently used up to the last filters, offering cost advantages over the pricier stainless steel options, along with reduced installation time.

Installation Costs: Aluminum vs. Black Iron
When installing a new compressed air distribution system or upgrading an existing one, it’s crucial to consider not just material expenses but also installation costs. Opting for a modular aluminum piping system significantly reduces installation time and eliminates the need for specialized tools, resulting in savings on both labor and downtime. These savings often account for a substantial portion of the cost disparity between aluminum and iron options.

Determining the Right Time to Upgrade to Aluminum Piping

Upgrading your compressed air distribution system is a significant investment in both time and money. While it’s important to maximize the service life of your existing aging black iron piping system, persistent issues like rapidly developing leaks, air contamination, substantial pressure drops, or an over-used compressor signal a potential need for an upgrade. When that time comes, transitioning to aluminum piping can be the smartest choice.

Interested in expanding the ROI of your compressed air distribution system? We’re here to help! Contact us today



Compressed Air Best Practices® Magazine Webinar

Avoiding Production Downtime_ Real Time ISO 8573-1 Compressed Air Quality Monitoring and Audits

Presented by: Francisco Lara

The 8 Best Reasons for Regular Compressed Air Maintenance

Compressed air systems are the workhorses of the industrial manufacturing world. From material conveying to blowoff to countless pneumatic processes, compressed air is responsible for a lot of tasks in industrial facilities. As rugged as compressed air systems may be, they still need consistent maintenance in order to keep everything running the way it should. At Airtec, we provide solutions to improve long-term operations and energy efficiency, and our compressed air maintenance services are no exception. Here are 8 reasons we recommend regular maintenance:

  1. Dirty compressed air systems can cause contamination in the products being produced.
    1. In high-purity operations, like pharmaceuticals or food production, dirty compressed air can cause you to fall out of compliance AND damage products
    2. For coating and painting operations, dirty compressed air can contaminate liquid components and ruin the product
  2. Unmaintained compressed air systems can lead to component failure, resulting in costly repairs or replacements.
    1. Lack of maintenance often results in oil vapor or condensation buildup, both of which damage the full compressed air system
  3. Compressed air leaks can waste valuable compressed air and energy, as well as create safety hazards.
    1. Leaky piping, joints, tubing, hoses, etc. can cost thousands per year and overexert your air compressor as it tries to compensate.
    2. Pressure buildups in hoses and other areas can be hazardous to personnel.
    3. Tools that use compressed air may not function properly, slowing day-to-day operations.
  4. A compressed air system that is properly maintained will run more smoothly and reliably, with fewer unexpected outages.
    1. Reduced downtime translates easily into long-term savings and higher production
    2. Compressed air maintenance pays for itself quite quickly
  5. Compressed air maintenance includes cleaning and inspecting all compressed air components to identify potential problems before they occur.
    1. Regular maintenance can give you a better understanding of bottlenecks and problem areas in your system
    2. Airtec also offers sophisticated yet affordable compressed air monitoring solutions that we can install
  6. Well-maintained compressed air systems require less down time for repairs.
    1. Beyond reducing unexpected outages, planned downtime often takes less time on a well-maintained system
  7. Compressed air system maintenance can extend the life of your compressed air components and equipment.
    1. Industrial air compressors aren’t cheap. Regular maintenance can drastically improve the lifespan of your compressor.
    2. Smaller, more replaceable components will also not need to be replaced as frequently
  8. Regular compressed air system maintenance will help ensure that your compressed air system is running at peak performance, saving you time and money in the long run.
    1. Peak performance means peak efficiency and output, allowing your facility to operate at a higher overall level of performance
    2. Use less energy to get the necessary compressor output.

Airtec is a global leader of compressed air efficiency. Our compressed air maintenance services are designed to help you introduce new levels of efficiency to your system, regardless of its size or compressor model. We also offer best-in-class technology, like SUTO, if you require monitoring solutions to better maintain your system.

If you would like more information on our compressed air system maintenance services, please contact us today. We would be happy to discuss our solutions with you and answer any questions you may have.

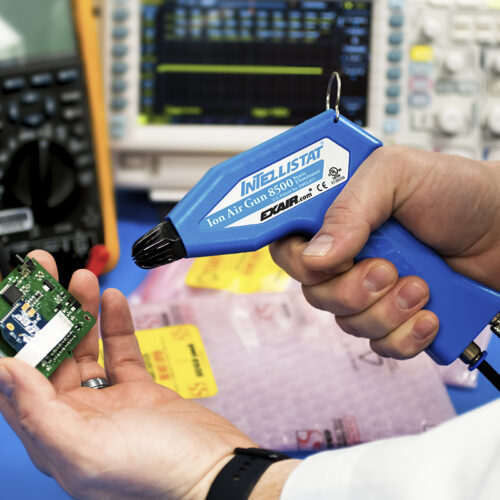

Intellistat Ion Air Gun for Static Elimination

Airtec is happy to present, EXAIR’s patented Intellistat® Ion Air Gun. A handheld and lightweight solution to static elimination in clean processes or sensitive assembly work such as scientific and electronic test facilities, laboratories, and clean rooms.  The Intellistat was designed to consume minimal compressed air while simultaneously delivering precise blow-off, and exceptional static decay rates capable of reducing 1000 volts to less than 100 in less than a second at up to 24” away.


This Intellistat is activated with a comfortable, ergonomic short throw trigger which requires minimal effort. Constructed with a low voltage transformer converting 120V to 24V, it was designed to ensure user safety, in addition to using an EXAIR engineered air nozzle to maximize efficiency and meet OSHA requirements for sound level and dead-end pressure. It is equipped with a red/green LED to signify proper functionality, as well as a hook for easy hanging and storage. Made from durable static dissipative polycarbonate, the Intellistat also assures its usefulness in applications requiring non-conductivity such as circuit board or electronics manufacturing or testing.

The Intellistat is a low maintenance solution that is UL listed and CE compliant, providing an excellent addition to EXAIR’s entire Gen4 static eliminator product line including Super Ion Air Knives, Ion Air Cannons, Ion Air Guns, Ionizing Bars and Ionizing Points. Reach out to us today for a free quote on our compressed air solutions.


Electronic Flow Control and Its Many Uses

With each passing year, energy efficiency becomes a higher priority for industrial operations. Whether the goal is meeting new sustainability requirements, cutting operations costs, or increasing the longevity of current equipment, the move to efficiency and, by extension, reduced energy consumption is the clear-cut next step for nearly every industry. But what does the shift to energy efficiency look like? In all likelihood, this shift will come from many small changes throughout the system.

In large-scale industrial settings, it can be difficult to see how small changes can make a meaningful difference in how many resources are used on a daily basis. But make no mistake, inefficient, quick solutions are a major source of waste in systems of all sizes. Look at blowoff as an example. A common, inexpensive part used for blowoff is simply drilled-out pipe through which compressed air passes. A piece of pipe with holes drilled in it doesn’t seem like it would drain much air and costs significantly less than something more tailored to the situation, such as Air Knives or Air Wipes, but the constant drain on air supply builds up, especially when similar inefficiencies are scattered throughout the system.

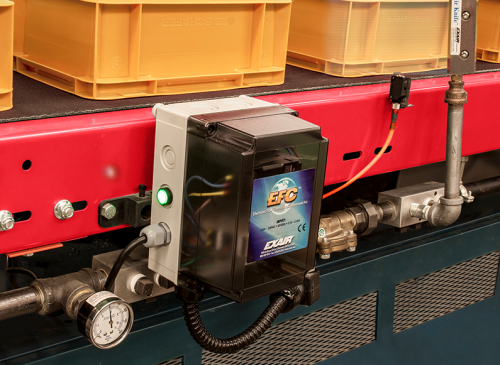

Exair Electronic Flow Controller

The Exair EFC is an outstanding example of compressed air technology that boosts efficiency, saving money and helping better meet green regulations. The EFC combines a photoelectric sensor with a timing control, limiting compressed air use by simply switching airflow off when no part is present. The timing control can be easy tuned to the application requirements, and sensing distance can be altered as well.


  • Auto body blowoff
  • Package cleaning
  • Part drying after wash
  • Dust removal
  • Scrap removal
  • Filling operations
  • Cooling hot parts
  • Neutralizing static
  • Cleaning molded parts


  • Easy electrical hook-up; 100-240VAC, 50/60Hz
  • NEMA 4/IP66 environments
  • Compact sensor for mounting in tight spaces
  • Eight function analog timer for on/off , pulsing and delay control
  • Timer setting from 0.10 sec. to 120 hrs.
  • Sensor withstands water and dust for accurate readings
  • Sensor has superior immunity to noise and inductive loads
  • Sensor has long distance sensing up to 3 feet (1m)

Meet Operational Goals with Ease

As nearly every operations specialist knows, small inefficiencies build up, and solutions that pay for themselves in only a few months or weeks of operation are always worth it. Resistance to making these small changes almost always comes from a couple of common misunderstandings:

  1. Underestimation of the amount of waste generated by nonspecific solutions and poor resource management
  2. Lack of understanding on how much tailor-made solutions can save in the long-run

Thanks to modern compressed air technology solutions, both of these points can be easily addressed with pinpoint-accurate usage data.

How Airtec Can Help

The Exair EFC is just one of numerous solutions we offer that can help you build a better system. We take care to seek out the latest and best of compressed air technology to help our clients meet and exceed their goals. From identifying and repairing leakage to making product recommendations to installation, we have experience needed to provide you with exactly what you need, no matter your industry. Reach out to us today for a free quote on our compressed air solutions.

The Difference Compressed Air Accessories Can Make

In many industrial systems, the most damage is often done by the smallest oversight. The quantity of degraded components can easily build up if not consistently addressed, leading to problems as wide ranging as constant resource waste and catastrophic shutdown. In this day and age, when operational budgets are being reevaluated and cut left and right, there’s absolutely no room for waste. That’s why we at Airtec offer an array of recommended products and services that includes technology-driven compressed air solutions, like SUTO, aimed at preparing your system for whatever lies ahead.

SUTO offers among the most advanced and cost-effective compressed air solutions on the market, from data-powered controls to precision sensors to their purpose-built software suite. Every single SUTO product is integrated into a single database that is accessible via their dashboard, so you can instantly view the status of your full compressed air system all in one console. With SUTO’s compressed air technology, routine maintenance becomes much simpler while also reducing the margin for error. In addition to keeping your system operating at its peak, SUTO also provides some of the best spot-checking tools in the business, allowing you to locate any and all leaks or power losses.

Leak Detection and Power Measuring

Leak detection is a critical part of maintaining compressed air efficiency, but it is often time-consuming. After all, manually checking-up on an entire compressed air system on a regular basis is almost impossibly labor-intensive. However, when you couple the data gathered by SUTO’s sensors with their advanced S 530 Leak Detector, leak detection and repair can be handled much more quickly and with a higher degree of accuracy. To a similar end, with SUTO’s S 110 Power Meter, you can be sure that your air compressor is always functioning the way it should. SUTO’s solutions give you the power to operate your system at the highest possible levels.

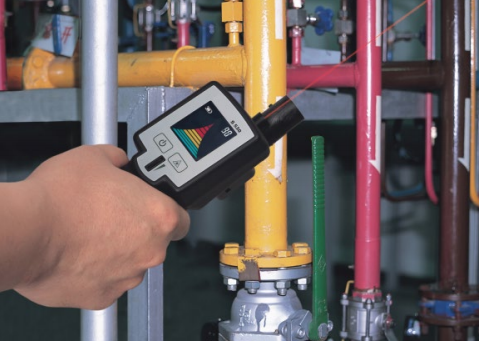

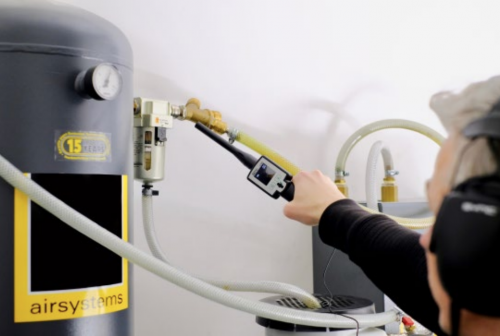

S 530 Leak Detector for Pneumatic Systems

  • Leak detection in compressed air, refrigerants, or any gas
  • Insulation test for doors and windows
  • Detect partial electrical discharges that damages insulation
  • Transforms inaudible signals into a frequency which can be easily heard
  • Additional features include
    • Noise-isolated headset
    • Integrated laser pointer to spot leaks from a distance
    • Ultrasonic tone generator used to find small openings in unpressurized environments

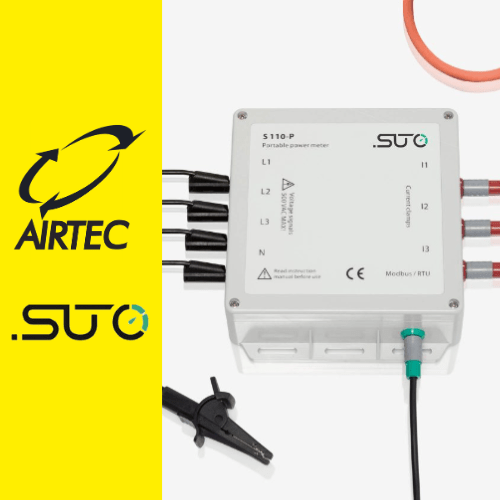

S 110 Power Meter for Air Compressors

  • Measure the actual power consumption in kW and accumulate the Energy consumption in kWh of a 3-phase load
  • Measure other parameters such as current, voltage, cos phi etc.
  • Hat rail, wall mountable and portable versions are available

With SUTO, you can put the days of elusive leaks, mysterious power dips, and frequent malfunctions comfortably behind you, all while further optimizing your system in preparation for further economic twists and turns. The solutions above are designed specifically for compressed air systems, reducing the risk of false positives. To learn more about SUTO, compressed air technology, or Airtec and how we can help you optimize your system, please feel free to reach out to us today.

Why It’s Important to Monitor Compressed Air Quality

A compressed air system is only as good as its air supply. Many of the best designed systems are rendered significantly less efficient and powerful, simply because of low quality air supply. What’s more, low quality compressed air can ruin products and jeopardize safety standards in facilities under strict safety guidelines. However, ensuring high quality for air supply can be pretty challenging, especially in more complex systems that make prominent use of ambient air. To meet this challenge, you need to be able to examine the air quality of the full system, not just a few different points. Fortunately, a few cost-effective but advanced compressed air technology solutions can help.

How SUTO and Airtec Can Help

One Airtec’s most highly-recommended product lines, SUTO offers integrated compressed air software and hardware solutions aimed at offering expansive visibility into the everyday operations of your compressed air system. SUTO air quality monitoring tools provide clear but expansive metrics on contaminant levels in any given area of your system. Using these tools, you can maintain high quality standards, increasing longevity for moving parts, guaranteeing product quality, and bolstering efficiency and cost savings. To learn more about any of the products below, please feel free to reach out to us today!

S 120 Oil Vapor Sensor

  • Measures oil vapor contents in compressed air and other gases
  • Can be used for permanent or in portable applications
  • Measures down to 0.003 mg/m³
  • Easy connection through sampling hose and quick connect
  • Output signals: – 4 … 20 mA
    • RS-485, Modbus RTU
    • Relay switch (NO)
  • PID sensor for highest accuracy
  • Service and Alarm indication through LED
  • Connectable to SUTO displays and data loggers as well as third parties displays and control units
  • Optional integrated 5” touch screen and data logger

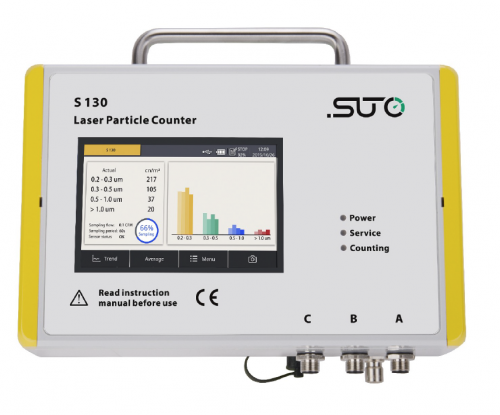

S 130 Laser Particle Counter

  • Easy connection to compressed air through 6 mm quick-connector
  • Can be used as a portable or stationary instrument
  • Particle sizes from 0.1 – 5.0 μm (depending on model)
  • Optional display
  • Measures according to ISO 8573-4
  • Output signals:
    • RS-485, Modbus RTU
    • SDI (SUTO internal signal)
    • Relay switch (NO)
  • Connectable to SUTO displays and data loggers as well as third parties displays and control units
  • Optional integrated 5” touch screen and data logger

S 600 Compressed Air Purity Analyzer

  • Particle Concentration Measurement
    • Measurement methods according to ISO 8573 standards (together with isokinetic sampling device)
    • Latest laser detection technology
    • Smallest particle size 50% per JIS, bigger sizes 100% per JIS
  • Dew Point Measurement
    • Uunique multiple sensor technology allows for broad measurements
    • Long-term stability and established measurement methods
    • Highly accurate with margins at  ±2°C
  • Oil Vapor Measurement
    • Advanced photoionisation detector (PID) with self-calibration
    • Wide range of oil vapor concentrations
    • High accuracy with 5% of reading ± 0.003 mg/m³
  • Pressure Measurement
    • State-of-the-art sensor technology
    • High-quality auxiliary compressed air system data
  • Plug and Play Measurements at a Touch
    • Integrated data logger records all channels in parallel for further analysis and PDF reports
    • 5’’ touchscreen interface and software guidance to easily run pre-set measurement routines

S 601 Compressed Air Purity Analyzer

  • Particle concentration measurement
    • Channel sizes: 0.3 … 0.5, 0.5 … 1.0, 1.0 … 5.0 μm (A) 0.1 … 0.5, 0.5 … 1.0, 1.0 … 5.0 μm (B)
    • Laser particle counting technology
    • Counting efficiency: 50% for smallest size
      •  95% for all other sizes
  • Oil vapor measurement
    • Latest PID sensor technology
    • Ranges from 0.003 … 10.000 mg/m3
    • High precision: 5%
  • Dew point measurement
    • Dual sensor technology (Polymer and QCM)
    • Wide measuring range of -100°C … +20°C
    • High precision of ±2°C
  • Pressure measurement
    • Measuring range 0.3 … 1.5 MPa
    • Accuracy of 1% FS
  • Compressed air connection through 6 mm quick connect
  • Ethernet (Modbus TCP), RS-485 (Modbus RTU) and USB interface
  • Low purge air loss
  • 100 … 240 VAC power supply
  • 5” color touchscreen with data logger

Using Data to Improve Your Industrial Compressed Air System

Compressed air technology is taking rapid strides with each passing year. From efficiency-boosting flow measurement to sophisticated but sturdy dew point sensors, the quantity of possibilities present in this new tech is incredible. At Airtec, we strive to continually seek the best products and practices for compressed air systems today, and within the world of compressed air technology, SUTO is consistently one of our top recommendations.

SUTO’s IoT products allow you to monitor your entire system in a single interface, meaning that you don’t have to waste time combing through your system for individual measurements. Instead, SUTO offers several different displays/data loggers to provide you with visual representation of exactly what is going on in your system at any given time. To learn more about any of the solutions below, please feel free to reach out to our team today!

Displays and Data Loggers

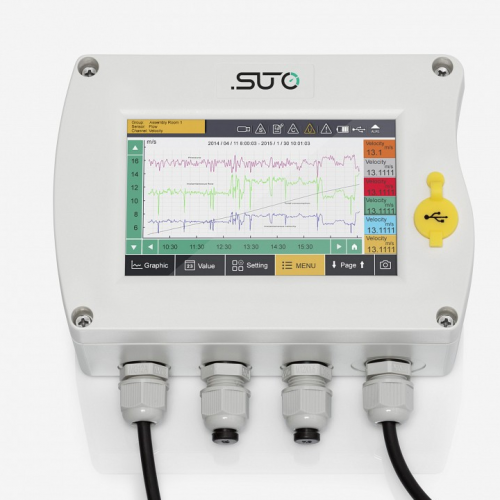

S 330/331 Display and Data Logger

  • High resolution 5“ colour touch screen interface
  • All SUTO sensors and compatible third party sensors are connectable
    • 16 x Modbus inputs (58 standard or optional 108 Channels)
    • 2 x SDI inputs (12 channels)
    • 2 x Analog and pulse input (4 channels)
    • Plus 10 virtual channels for calculations like kW/m³/min or Differential pressure
  • 2 wall casings available: 4 cable glands or 7 cable glands
  • USB interface for data transfer to data stick or PC
  • RS-485 (Modbus RTU) and Ethernet (Modbus TCP) interface to factory automation system
  • 10 W sensor power supply (24 VDC)
  • Data logger (S 331 only): 100 million values
  • Alarm monitoring with 2 relay outputs
  • Integrated web server for remote monitoring
  • Quick set up
  • Various options for system extension

S 320 Display

The S 320 local display provides a simple, cost effective solution where information from a single difficult to access sensor is required.

S 551 Compressed Air Analyzer

  • Easy to use
    • Just connect the sensor and start the recording, no configuration and programming required
    • Easy operation through color-touch display
  • Flexible
    • Connectable sensors for all required measurement tasks (air flow, air consumption, power consumption, pressure, temperature and many more)
    • Up to 24 inputs through extension boxes and Modbus
    • Several loggers can be combined: no need to have long cables from the sensor to the logger
    • Third party sensors can be easily connected
  • Safe
    • Power glitches and cuts won‘t affect performance: battery backup power
  • Efficient
    • S 551 logs data on site
    • Data is analyzed in the office
    • Full software package includes:
      • S4A for basic analysis
      •  CAA for compressed air audit analyzes


As useful as visual interfaces are, they are only as good as the software behind them. SUTO offers some of the most advanced and accurate software on the market. Their S4M offering is part of a new generation of monitoring software designed to monitor systems of all scales with pinpoint accuracy.

Smart Compressed Air System Monitoring with S4M

  • Data acquisition of from an unlimited number of sensors from locations all over the world
  • Alarm monitoring and indications on screen, relay and SMS
  • Secure data storage on local hard drive in a SQL database
  • Server / client architecture
  • Application software installed on Windows PC
  • Client access through web browser (PC, tablet, HMI terminal)
  • Remote access via Internet
  • Scalable customizable solution
  • Communication with field devices through Modbus TCP or Modbus RTU or via web
  • Multi-language support
  • Email feature for sending alarms and reports
  • Consumption reporting (optional)

Dew Point Sensors: A Valuable Application for Compressed Air Technology

Dew point monitoring is among the most important steps you can take when caring for your compressed air technology. If the dew point isn’t where it should, moisture will accumulate in your compressed air system, resulting in pipe corrosion, reduced lifespan for pneumatic parts, and even unscheduled downtime. Fortunately, thanks to massive leaps in compressed air technology, dew point monitoring is now easier and more accurate than ever before, with companies like SUTO leading the way.

One of Airtec’s most highly recommended product lines, SUTO offers compressed air technology that allows you to access data from sensors placed throughout your system, giving you a clear picture of the status of your compressed air system. With SUTO’s dew point sensors and monitors, you can see the dew points of different parts of your system in a central dashboard, helping you identify where problems might be occurring. Additionally, many SUTO sensors have automated notifications that are sent when dew points reach a certain threshold, allowing you to take control quickly.

SUTO’s Dew Point Sensors and Meters

All of the SUTO dew point sensors and meters offer rapid response time and a durable, long-lasting build. Many are also equipped with SUTO’s IP65 casing, providing robust protection for even the most rugged industrial environments. If you’re interested in learning more about any of the below or our other efficiency-boosting solutions, feel free to reach out to Airtec today!

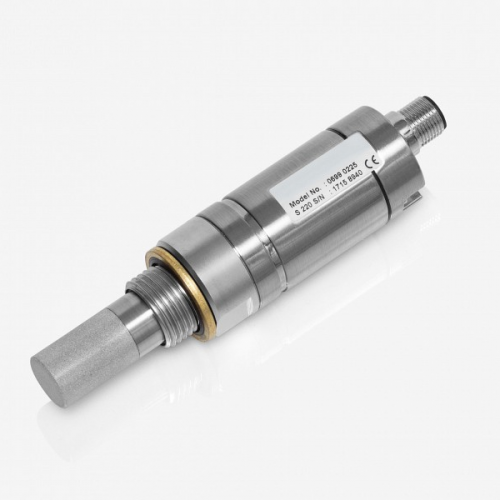

S 220 Dew Point Sensor (-100ºC … 0ºC)

  • Small size makes it ideal for dryer installations
  • Measures dew points down to -100°C
  • SUTO QCM sensor technology
  • Version with integrated pressure measurement
  • Various output versions available: 1 x 4 at 20 mA, 2 x 4 at 20 mA, RS-485 (Modbus), 4 at 20 mA loop powered
  • Can be installed directly into dryers through G 1/2” thread
  • High accuracy of ±2°C dew point
  • M12 connector

S 212 Dew Point Sensor (-50ºC … 20ºC)

  • For low dew point applications down to -50ºC
  • High accuracy of ±2°C dew point

S 215 Dew Point Sensor (-20ºC … +50ºC)

  • Affordable dew point sensor for mid range applications such as refrigerant dryer monitoring
  • Can be installed directly into dryers through G ½” thread
  • High accuracy of ±2°C dew point

S 217-OEM Dew Point Sensor (-50ºC … +50ºC)

  • Small size makes it ideal for dryer installations
  • Measures dew points down to -50°C
  • 2-wire or 3-wire output
  • Can be installed directly into dryers through G 1/2” thread
  • High accuracy of 1°C to 2°C dew point
  • Withstands condensation
  • M8 / M12 connector and cable with open wires

S 230/231 Dew Point Sensor (-100ºC … +20ºC)

  • Dew point sensor with optional ATEX, IECEx approval
  • Dual sensor technology for high accuracy of 2°C over the whole range from -100°C to +20°C
  • Two outputs available: 4 … 20 mA, RS-485 (Modbus RTU).

S 201 Dew Point Sensor With Display and Alarm (-60ºC … +20ºC)

  • For low dew point applications down to -60°C
  • Graphic display and Relay output
  • Can be installed directly into dryers through G ½” thread
  • High accuracy of ±2°C dew point

S 305 Dew Point Monitor (-50ºC … +20ºC / -20ºC … +50ºC)

  • 2 models: -50°C … +20°C and -20°C … +50°C
  • Plug & Play (complete solution)
  • Compressed air supply through 6 mm Quick-Connect
  • Power supply: 100 … 240 VAC or 24 VDC
  • Wall or panel mountable
  • Accuracy of ±2°C
  • 4 … 20 mA output to PLC or SCADA system
  • Pre– and Main-Alarm programmable:
    • Optical: red blinking display
    • 2 relay outputs

S 505 Portable Dew Point Meter (-100ºC … +50ºC)

  • Measures dew point, temperature and pressure (all in one instrument)
  • 3 sensor solutions available:
    • Q: -100°C … -30°C sensor for trace moisture applications
    • P: -50°C … +50°C sensor for standard applications
    • Q+P: covering the full range of dew point measurement
  • Modern color touch screen interface
  • Data logger, USB interface, wireless connection to portable printer
  • Measuring / parking chamber for fast sensor response
  • Application software included

Digital Flow Meters: Compressed Air Technology

In this day and age, the need for operational efficiency has never been greater. As organizations look to cut costs left and right, you need to be ready to offer up ways to save money. In the world of industrial systems, this can be pretty difficult, as your facility Your compressed air system can either be a powerful asset or a source of high energy costs. At Airtec, we offer products and services specifically designed to help you get the most out of your system. With that in mind, the products capable of making the biggest difference in your compressed air system combine the latest technological advances with long-held best practices for compressed air. This approach is what makes SUTO products so valuable to your compressed air system.
is likely set up to operate in a very specific way. But that doesn’t mean there aren’t ways you can boost efficiency, and in the cases of Airtec’s product recommendations, you’ll find that efficiency boosting also means performance boosting.


SUTO’s IoT-Powered Flow Meters

SUTO offers some of the best, most practical, and most advanced compressed air solutions currently on the market. All SUTO products, including sensors, flow meters, air quality meters, and data loggers are connected via the Internet of Things, meaning that all devices can be controlled by one master control and all data can be viewed in one place. This is especially useful for compressed air systems due to how complex they are.

SUTO flow meters and sensors are designed to provide pinpoint-accurate measurements on airflow, allowing you to see any variation in airflow that might indicate leakage or some other loss of compressed air. They offer 5 different IoT-enabled flow meters and sensors to suit any purpose:

S 401/421 Thermal Mass Flow Sensor

  • Measures standard flow, mass flow, consumption and temperature
  • Thermal mass flow, independent of pressure and temperature changes
  • IP65 casing provides robust protection in rough industrial environment
  • Rapid response time
  • High accuracy and wide measuring range
  • App for mobile phones and tablets for wireless sensor settings
  • Sensor can be calibrated for 2 different gases

S 415/418 Thermal Mass Flow Meter

  • Thermal mass flow measurement, independent of pressure and temperature
  • Service App for setup and configuration
  • Accuracy of 1.5% o. RDG (S 418) and 3% o. RDG (S 415)
  • Simple installation, no straight pipe
  • Measures the full flow, no bypass measurement
  • 4-Digit LED display
  • Integrated data logger

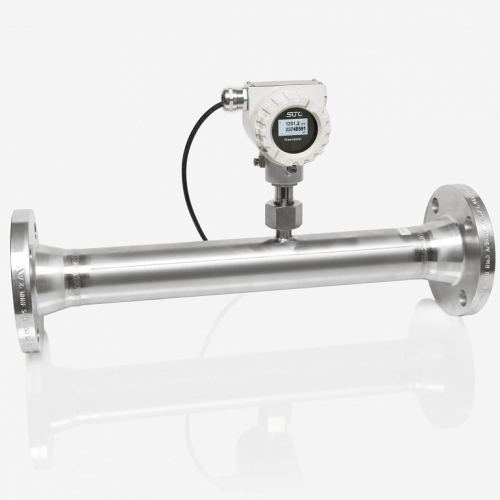

S 450/452 Heavy Duty Industry Flow/Consumption Sensor

  • No moving parts, non clogging
  • All contacting parts are made of stainless steel 316L
  • Robust metal enclosure suitable for out-door applications in harsh environment
  • Wireless interface for sensor settings on site
  • Display showing flow rates, consumption, medium temperature and diagnostic results



S 430 Pitot Tube Flow/Consumption Sensor

  • Flow and consumption measurement in wet air or high mass flow / velocity applications
  • High temperature applications up to 200°C
  • No mechanical wear parts
  • All contact parts are made of stainless steel


S 460 Ultrasonic Flow Meter

  • Measure liquid flows for
    • Chemical addition
    • Cooling and heating water
    • Drinking water
    • Broad range of refined hydrocarbons

S 409 Flow Direction Switch for Compressed Air/Gases

  • Detects smallest changes < 0.1 m/s referred to 20°C and 1000 hpa
  • No mechanical wear parts
  • Easy installation under pressure


Airtec Can Help You Install Compressed Air Technology

With SUTO, you can open up countless new ways to optimize your system for efficiency without sacrificing power. If you’re interested in learning more about SUTO’s offerings or other ways to optimize your compressed air system, feel free to contact us today.


We offer free quotes on our efficiency solutions and would love to help you achieve your operational goals.
