Refrigerated Air Dryers
Providing a clean air supply for your plant is one of the best ways to ensure reliability as well as efficient production. When the air particles are compressed, moisture is accumulated and spread through your air lines if its not properly treated. Excess moisture in your system can cause:
- Buildup of rust and increased wear to moving parts within the compression system
- Washing away of important lubrication
- Freezing in control lines that can cause malfunctions in colder weather
- False readings in certain instruments
…all of which can lead to system shutdowns if they carry on too long. Refrigerated Air Dryers are the perfect way to remove excess water from your system without putting too much of a dent in your wallet. While most water is removed by compressor filters, vapor can easily work its way into the air stream. Refrigerated Air Dryers operate by lowering the dew point of the water vapor that made its way into the system, collecting it as condensation, and allowing the now-dry air to pass through.
Refrigerated Air Dryers We Use

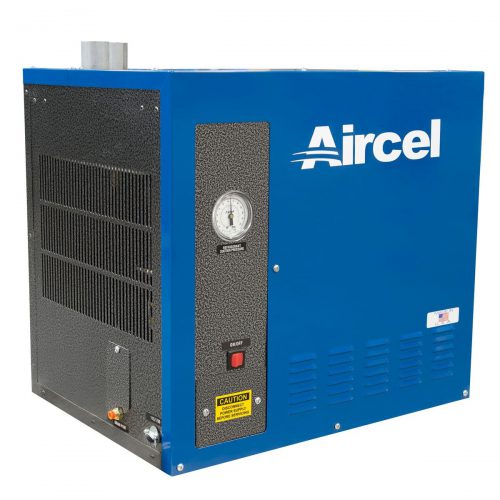

VF Non-Cycling Refrigerated Compressed Air Dryers
The VF Series (10-1,200 scfm) non-cycling refrigerated compressed air dryers are focused on reliable, constant dew point performance in all flow conditions. With its excellent heat transfer coefficients and extremely low pressure drop, these dryers will outperform the competition in protecting your compressed air systems, machinery, and tools.

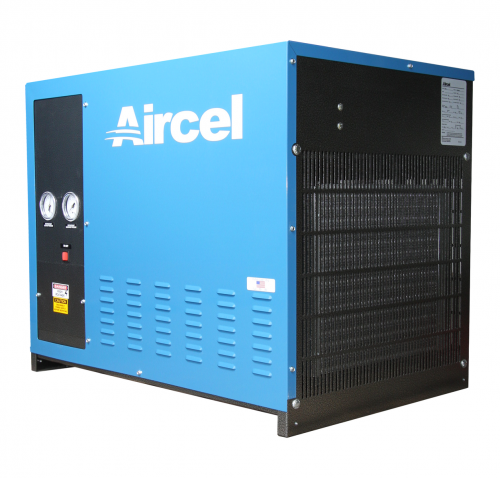

DHT High-Inlet Temperature Refrigerated Air Dryers
The DHT series (20-125 scfm) high inlet temperature refrigerated compressed air dryers have been designed specifically for use with smaller air compressors that typically do not incorporate an aftercooler. The DHT dryers can accept compressed air up to a temperature of 205°F and provide clean dry air at the outlet.
APET High Pressure Refrigerated Air Dryers
The APET Series (45-1,000 scfm) is a high pressure refrigerated dryer, with operating pressures up to 725 psig. Air-side components composed of 316 stainless steel provide corrosion resistance for high pressure applications such as PET market, injection molding, naval and military functions, and component testing.
AXHP Extreme High Pressure Refrigerated Air Dryers
The AXHP Series (20-275 scfm) is a refrigerated dryer designed for operating pressures up to 6,000 psig. With corrosion resistant, 316 stainless steel air-side components, the AXHP will fit custom, extreme high pressure applications like pre-treatments for high pressure breathing systems, pressure testing, or other extreme high pressure applications.

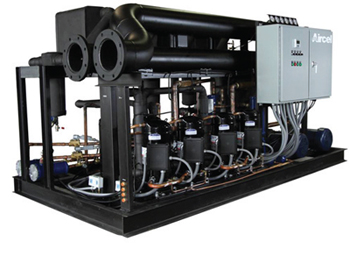

RTM High-Capacity Cycling Refrigerated Air Dryers
The RTM series (2,500 – 30,000 scfm) high-capacity cycling refrigerated compressed air dryers use multiple compressors with defined loading/unloading capacities and a thermal mass storage medium for energy-efficient operation. These dryers are ideally suited when large air volumes need to be dried to a reliable and constant dewpoint.
RDE Energy Savings, Direct Expansion Cycling Refrigerated Air Dryers
The RDE Series (4,000-30,000 scfm) is a high capacity refrigerated dryer engineered to offer consistent dew point over variable load conditions. The innovative, direct expansion, non-cycling dryer combines shell-and-tube heat exchangers with compact, rotary screw compressors. This offers class leading pressure drop while minimizing energy requirements by modulating refrigeration compression to match current load requirements.
An Effective and Reliable Way to Ensure Air Quality
At Airtec, we work hard to provide only the best parts and services for your air compression system. Through years of experience, we are able to create solutions catered specifically to your compressed air system. Call or email us for a quote and find out how we can help you increase your compressed air quality.
At Airtec, we offer a wide array of air dryers to fit any system. If you’re not certain which dryer will work best for your application, our systems experts can guide you through the purchasing process and help you find the best dryer for your money. We have air dryers in many sizes to accommodate your current air compression system.
If you’re uncertain which air dryer is the right one for you, we can help. As compressed air systems experts, we can craft the perfect solution for you, saving you both time and money. Call or email us for a quote or if you have any questions at all.
