S-Series Compressed Air Filters
High-Efficiency Industrial Compressed Air Filters
- Flow range: 20 – 3200 CFM
- Maximum pressure range: up to 290 PSI
- Compatible with ISO 8573 standards
- Porosity-free anodized aluminum construction
- “Zero Clearance” design for simplified maintenance
- Differential pressure indicator with monitoring system
- NPT, BSP, and ANSI flange connections available
Drain options:
- Automatic
- Manual
- Zero-loss
- Easy element replacement technology
- Corrosion protection through industrial anodizing
- Third-party certified performance testing

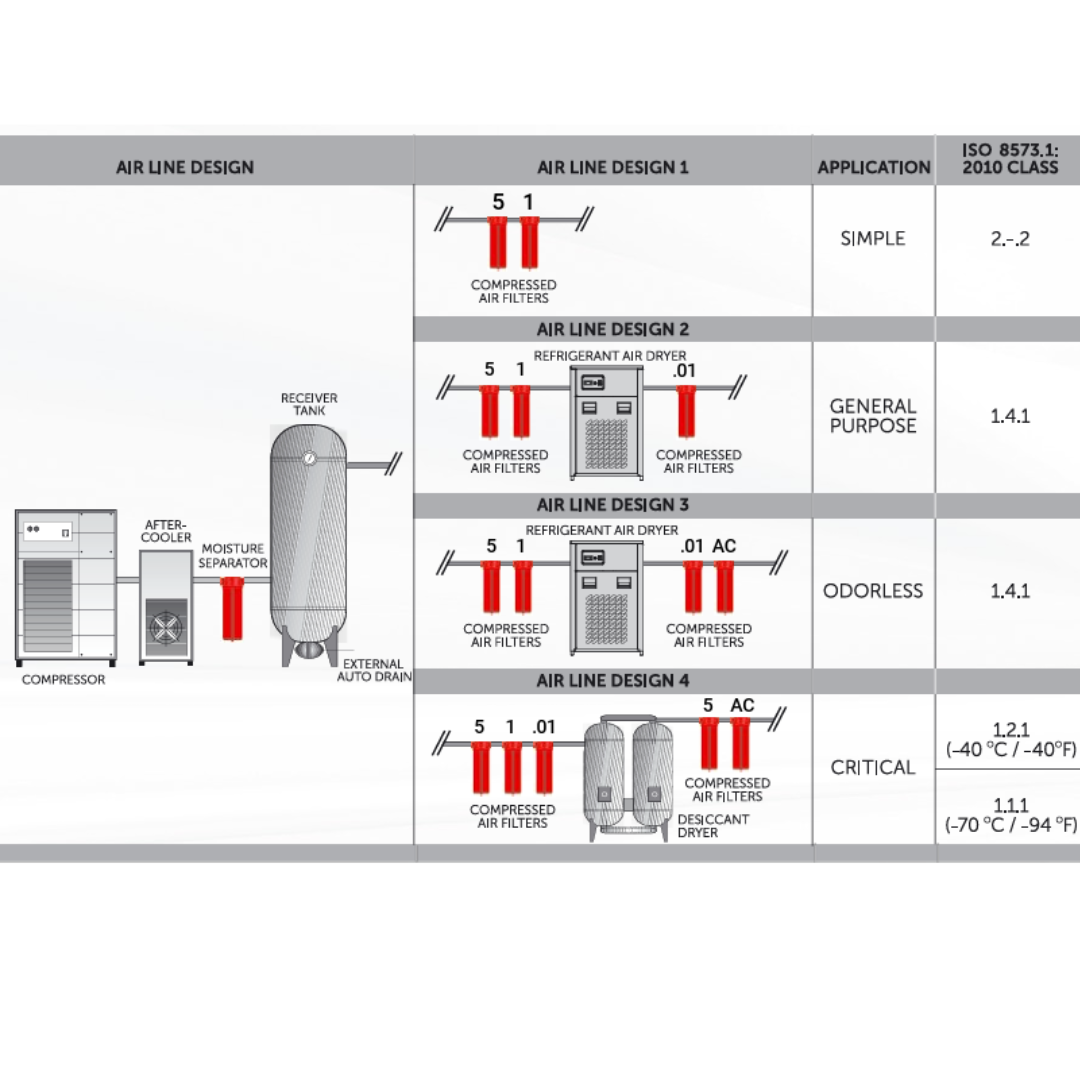

Description
Advanced Filtration for Industrial Air Quality
The S and SHC series are designed to minimize contamination from solid particles, water, and oil within compressed air systems, helping protect pneumatic equipment and extend its operational lifespan.
The “Zero Clearance” design technology allows quick and safe replacement of the filter element without the need for special tools, reducing maintenance time and simplifying system operation.
The anodized aluminum construction provides high corrosion resistance and enhanced durability in demanding industrial environments. In addition, the hermetic sealing system improves filtration efficiency and prevents compressed air losses.
These filters are manufactured in accordance with ISO 8573 standards, helping meet compressed air quality requirements for manufacturing, instrumentation, and critical process applications.
Applications
Industrial compressor protection.
Nitrogen generation systems.
Manufacturing processes.
Food and beverage industry.
Pneumatic instrumentation.
High-purity compressed air systems.
24/7 industrial plants.
Advantages
Low initial investment cost.
Reduced maintenance costs.
Compact design and easy installation.
High filtration efficiency.
Minimization of pressure drop.
Zero-loss drain options.
Protection of downstream pneumatic equipment.
Reliable operation in harsh industrial environments.

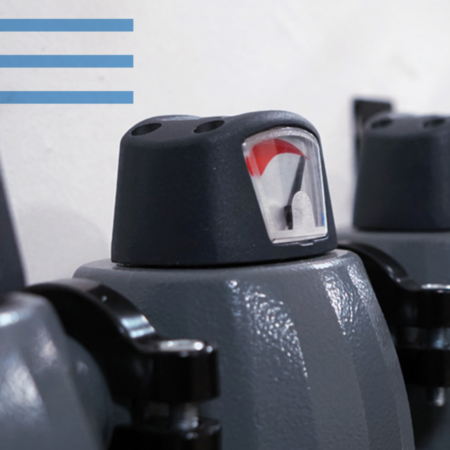

Precision Filtration for Maximum Performance

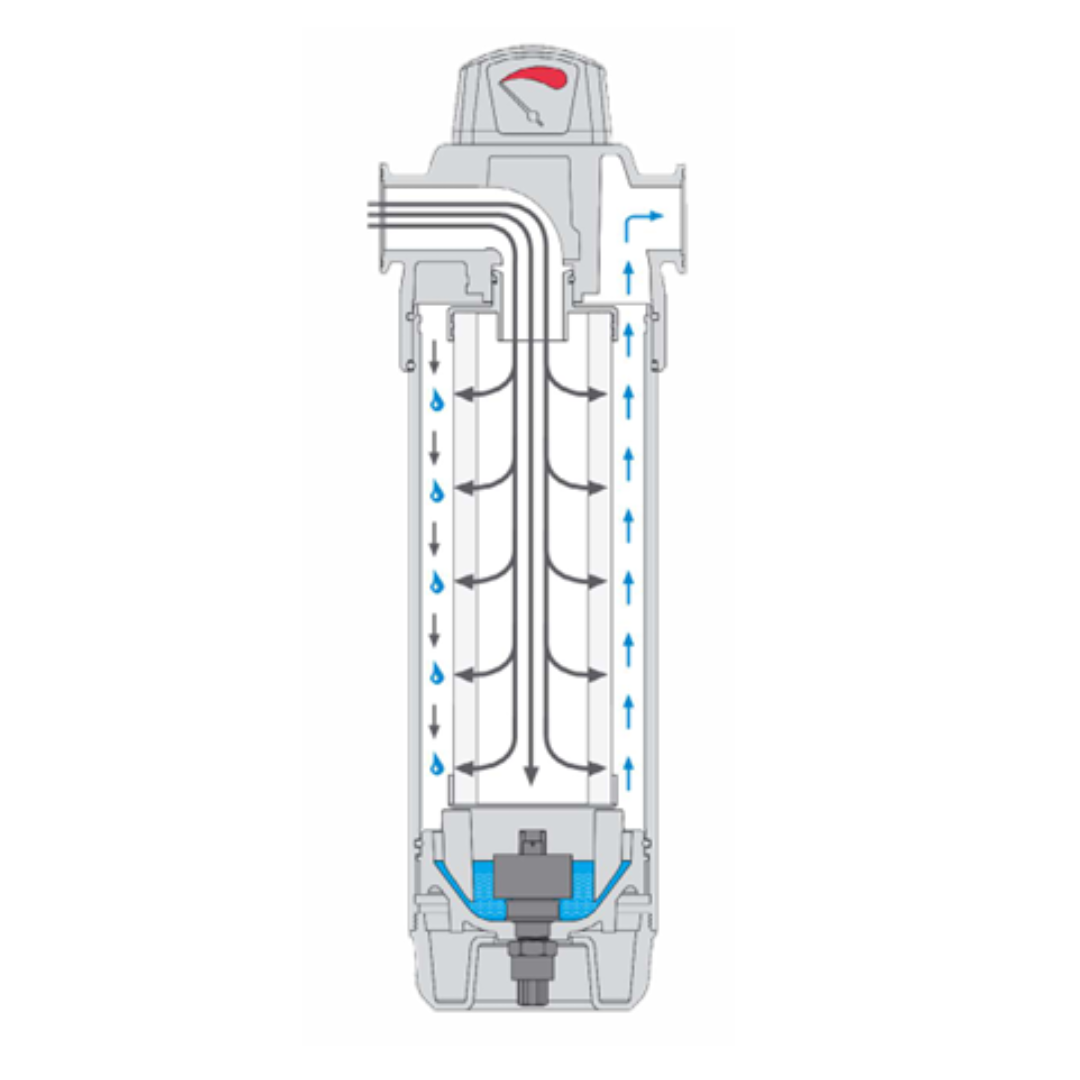

The filter elements are designed with depth media construction and fluted stainless steel support tubes, providing high resistance to pressure collapse while improving diagonal airflow through the element.
The PVC-impregnated drainage layer facilitates the removal of water and oil, maintaining the efficiency of the coalescing system and extending filter element replacement intervals.
The series offers four primary filtration efficiency ranges, capable of capturing contaminants as small as 0.01 microns, even under pressure conditions of up to 290 PSI.
The systems include clogging indicators, plastic handles for safe element replacement, and options for electronic or zero-loss drain valves to optimize compressed air consumption.
The anodized coating technology provides excellent corrosion resistance and improved structural stability under harsh industrial conditions.
