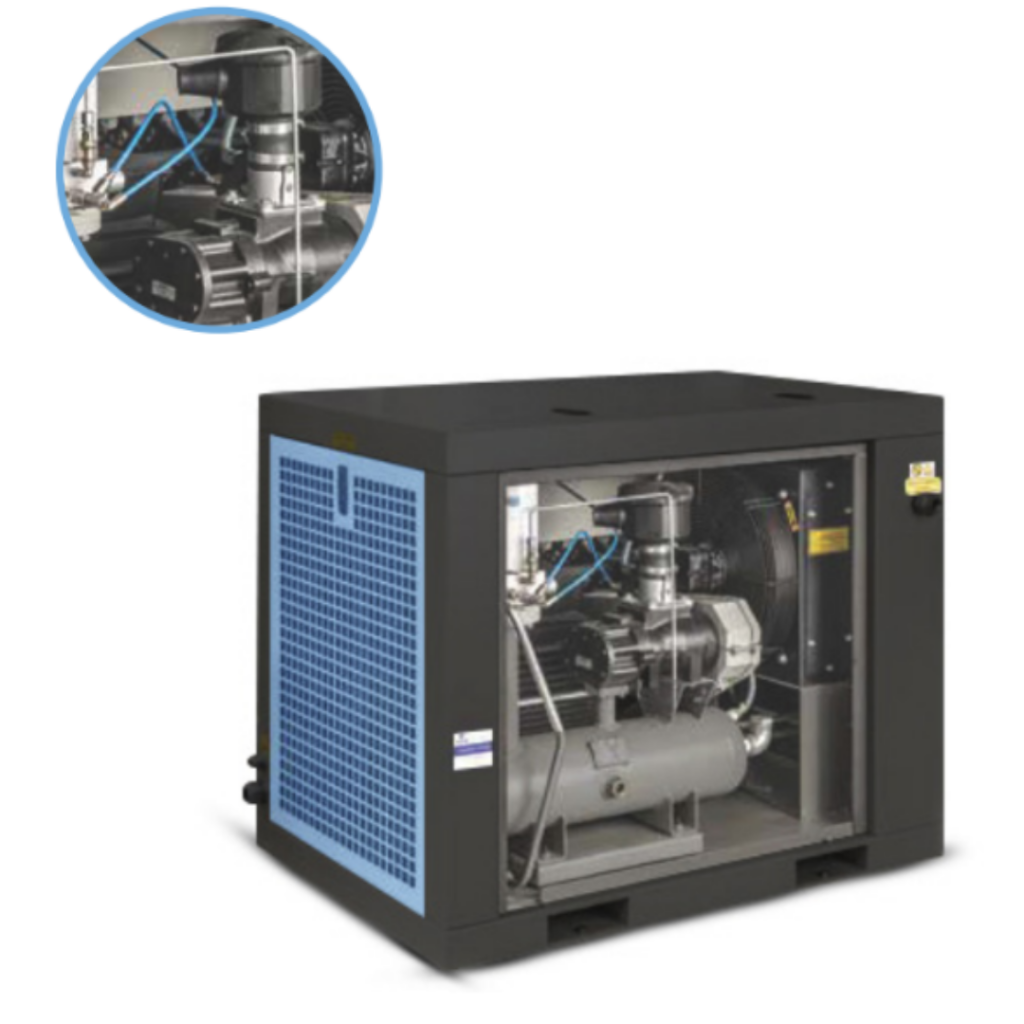

Serie STSH-VSD 290 PSI
Variable-Speed, Direct-Drive Rotary Screw Compressor
- Variable Speed Drive (VSD) technology for automatic demand adjustment.
- Working pressure up to 290 PSI.
- High-efficiency IE4 motor.
- Direct-drive configuration with no transmission losses.
- Low-speed radial fan with integrated inverter.
- Ultra-quiet operation.
- Remote monitoring and Industry 4.0 / IoT compatibility.
- Optional heat recovery.
- Reliable operation in ambient temperatures of 45°C or higher.
- Service program and 3-year warranty on the airend.
Description
Intelligent Control and True Efficiency for 290 PSI Applications
The STSH-VSD 290 PSI Series is designed for industrial processes that require consistent medium pressure with maximum energy efficiency. Thanks to its Variable Speed Drive (inverter) technology, the compressor automatically adjusts motor speed according to air demand—eliminating unnecessary load/unload cycles and significantly reducing power consumption.
Its Direct Drive design minimizes mechanical losses, while the premium-efficiency IE4 motor optimizes overall energy performance. The system is engineered for continuous 24/7 operation, even in ambient conditions of up to 45°C, ensuring thermal stability and operational reliability.
The integration of a microprocessor-based controller with MODBUS communication and IoT compatibility enables remote supervision, advanced electrical protection, and real-time monitoring—facilitating seamless integration into smart manufacturing environments.
Available from 25 HP to 100 HP, this series delivers best-in-class performance for applications requiring elevated pressure with precise control.
Applications
Industrial processes requiring constant 290 PSI pressure.
PET blowing and molding systems.
Metalworking industry.
Automotive manufacturing.
Cutting processes or medium-pressure pneumatic tools.

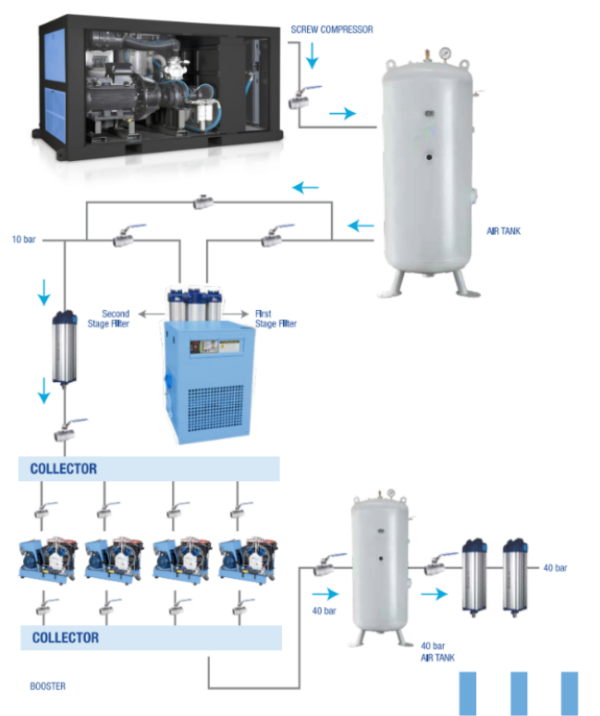

Integration with on-site gas generation systems.
Advantages
Automatic adjustment to actual air demand.
Reduced energy consumption compared to fixed-speed systems.
Stable pressure without critical fluctuations.
Reduced mechanical wear by avoiding frequent starts.
Low noise level compared to traditional compressors.
Greater operational control and data traceability.
Technical Information and General Specifications
The STSH-VSD 290 PSI Series is available in configurations ranging from 25 HP to 100 HP, with capacities reaching up to 190.35 CFM at 290 PSI, depending on the model. All variable-speed units operate standard at 460V and integrate WEG motors with Class F insulation, ensuring thermal stability and long service life.
The system incorporates AKG coolers with bar-and-plate technology, up to 60% more compact than traditional designs, improving heat dissipation and reducing contaminant buildup. The microprocessor-based controller features integrated phase protection, current monitoring for the main motor and fan, a high-resistance enclosure with IP65 protection, and compatibility with factory-installed or retrofit IoT modules.
The low-speed radial fan with integrated inverter optimizes cooling airflow, contributing to both energy efficiency and reduced operating noise.
