S606 – Stationary Breathing Air Quality Monitor

The S606 Stationary Breathing Air Quality Monitor provides 24/7 continuous monitoring of breathing air quality with all-in-one measurement of O₂, CO, CO₂, H₂O, and oil in compliance with EN 12021 and CSA Z180.1-0 standards.

✓All-in-one monitoring of O₂, CO, CO₂, H₂O, oil, temperature, and pressure — EN 12021 and CSA Z180.1-0 compliant.
✓Visible and configurable alarms with optical notifications and internal relays with customizable thresholds.

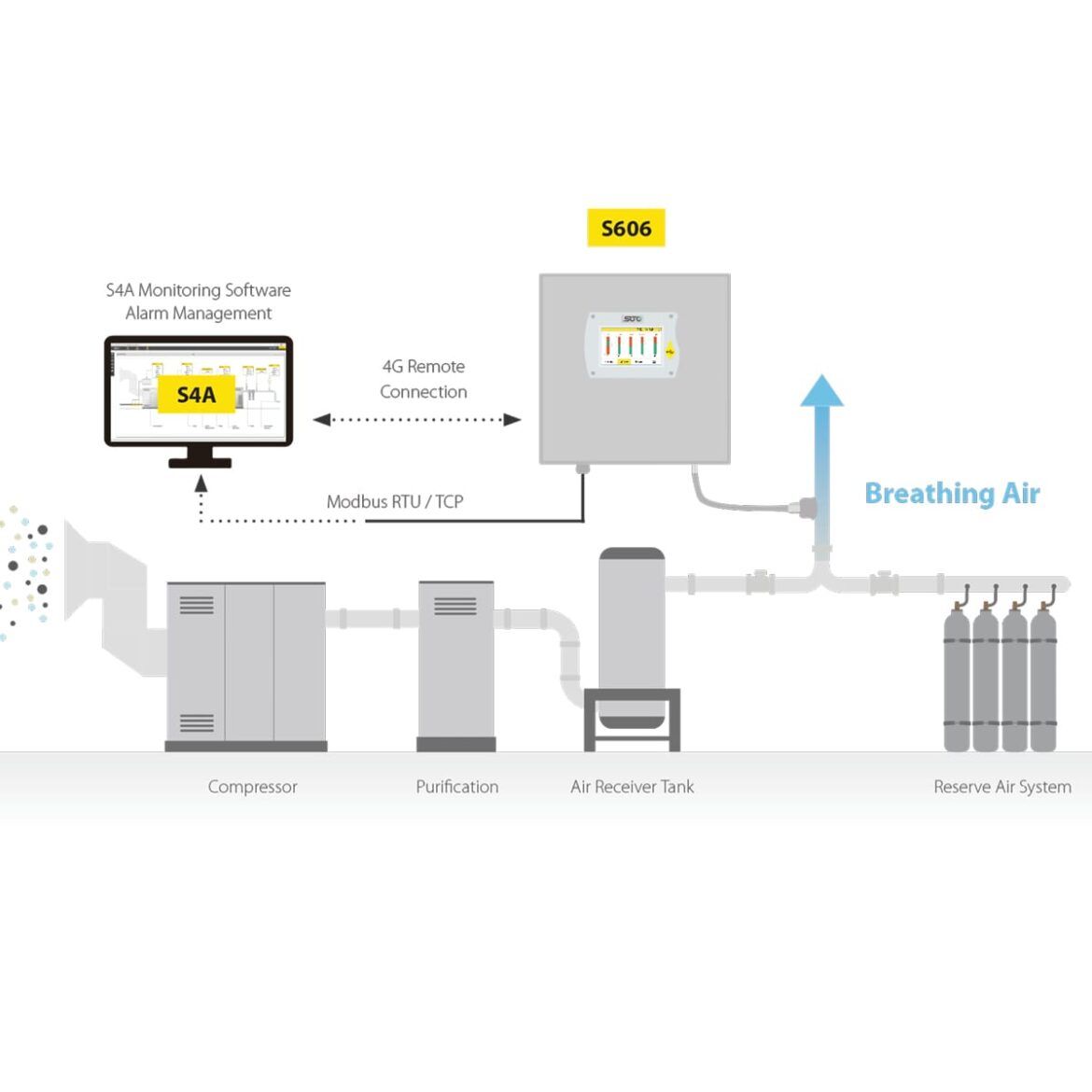

✓Flexible connectivity: Modbus/RTU, Modbus/TCP, and remote monitoring via 4G using free S4A software.
✓5″ touchscreen display with integrated data logger storing up to 30 million values.
✓Powder-coated steel housing with IP55 protection — easy installation via 6 mm tubing wall-mounted cabinet.

Request A Quote →
📄 Catalog

Añadir a la lista de deseos

Compare

Categories: Control and Monitoring Equipment, Product, Compressed air quality monitoring systems ISO 8573-1, Suto

Description

Description

S606 Stationary Breathing Air Quality Monitor – Continuous 24/7 Air Quality Monitoring

The S606 is a next-generation breathing air analyzer, designed to ensure that the air in your facilities meets international quality standards. Ideal for industrial plants, compressed air systems, and environments where respiratory safety is a top priority, the S606 enables real-time monitoring of critical parameters such as O₂, CO, CO₂, H₂O, and oil.

With its intuitive touchscreen and configurable alarms, keeping air safe and within permitted limits is easier than ever. Its flexible connectivity (Ethernet, RS-485, and 4G remote monitoring) allows supervision and data logging from anywhere, while its robust construction and IP55-protected cabinet ensure durability even in demanding industrial environments.

With the S606, what used to be a manual and complex quality control process becomes an automated, reliable, and fully traceable system, helping your team focus on production without compromising safety.

Applications

The S606 Stationary Breathing Air Quality Monitor for continuous 24/7 air safety.

Industrial plants with air compressors and breathing air systems.

Laboratories or environments where breathing air must comply with strict standards.

Continuous air monitoring in manufacturing plants, food processing, or pharmaceutical facilities.

Air quality monitoring in emergency respirator systems or critical workstations.

Advantages

Real-time monitoring: instantly measures O₂, CO, CO₂, H₂O, and oil, ensuring safe air.

Configurable alarms: automatic notifications if any parameter goes out of range, preventing risks.

Flexible connectivity: Ethernet, RS-485, and 4G allow remote supervision and data logging.

Robust construction: IP55-protected cabinet ensures durability in demanding industrial environments.

Intuitive operation: touchscreen and user-friendly system that reduces the complexity of quality control.

How does the S606 Breathing Air Quality Analyzer work?

Plant air enters the S606 through its sampling system (1️⃣), where it undergoes an initial 5-minute purge to remove any residual particles and ensure accurate measurements from the start. The device then samples the air every minute (2️⃣), detecting particles ranging from 0.3 to 10 µm in size.

The airflow is evenly distributed within the sensor, ensuring consistent and reliable readings. Additionally, the S606 integrates an alarm system that notifies when particle levels exceed set limits (3️⃣) and can connect to remote monitoring systems to record and analyze data in real time.

With an operating range of 10°C to 40°C and a compact design of 40 x 30 x 25 cm, this analyzer is ideal for maintaining breathable air quality in any industrial plant, providing a safe and controlled environment for workers.

Additional Information – S606 Particle and Airflow Monitor

The S606 is designed to deliver precision, reliability, and ease of use in any plant or laboratory. Its compact system allows flexible installation in production rooms, laboratories, or critical areas, adapting to different environments without complications.

The device stands out for its low maintenance: calibration is simple and does not require constant specialized personnel, reducing downtime and ensuring continuous operation. Moreover, the S606 can integrate with SCADA systems or monitoring software, enabling automatic reporting, alerts, and control dashboards, making real-time, data-driven decision-making easier.

With a particle count accuracy of ±5% and excellent measurement repeatability, it guarantees reliable results. Its design complies with international industrial air quality standards and safety regulations, ensuring safe and efficient operation.

All of this makes the S606 a complete solution for air and particle control in industrial environments, combining technological innovation with user-friendly practicality.
